Key Features:
– IP67 Enclosure
– Internal antennas
– CAN (up to 4 interfaces)
– Kline (up to 2 interfaces)
– Programable 9 Axis sensor: Accelerometer/Gyroscope/Magnetometer
– Dead reckoning
– Ethernet 100Mbps
– Audio CODEC
– MicroSD
– Micro SIM and Chip SIM available
Wireless Interfaces:
– GNSS (GPS + GLONASS)
– CELULAR COMMUNICATIONS
– GSM/GPRS, UMTS OR LTE
– WiFi 802.11 b/g/n
– BT 4.2
• Power Supply
– Nominal range of 7V to 48V.
– Typical consumption at 24V:
– OFF
– Standby
– RUN
– RUN + GSM voice call
• GNSS
– Receiver: GPS L1 frequency, C/A code.
– 56-channel* continuous tracking receiver.
– GALILEO L1 open service and GLONASS ready.*
– SBAS: WAAS, EGNOS, MSAS, GAGAN.
– Update Rate: 4Hz.
– Accuracy: 2.5 meters CEP.
– Signal Acquisition
Cold Start: 29 sec.*
Warm Start: 28 sec.*
Hot Start: < 1 sec.
– Signal Reacquisition: < 1 sec.
– Active Antenna Power Supply: +3.0V @ 30mA.
* Features availability depending on version.
• GSM/GPRS (UMTS and LTE options available)
– GSM850 + EGSM900 + GSM1800 + GSM1900.
– Class 4 (2W) for GSM850/EGSM900.
– Class 1 (1W) for GSM1800/GSM1900.
– GPRS Class B, Class 10 (4&2).
– Audio and CSD Data calls.
– SMS (MT/MO).
– Multiplexed communication supported allowing GSM
events and SMS during GPRS connection.
• Batteries
Back-up when there is no power supply available.
– Standard backup battery for RTC. Duration 10 years.
– Optional rechargeable Li-Ion 3.7V.
Inserted via rear battery cover.
• Temperature
Storage -40 ºC to +85 ºC
Operating -40 ºC to +85 ºC
Operating from Li-Ion Battery -20 ºC to +60 ºC
Li-Ion Battery recharge 0 ºC to +45 ºC
• Interfaces
– Up to 4 CAN bus supporting full speed 1Mbps CAN 2.0B.
– Up to 2 K-line bus.
– Integrated sensors.
– Programmable 9 axis sensor, accelerometer, gyroscope and
magnetometer.
– 10 configurable digital input/outputs:
– 50V max inputs (logic low <1.5V, high >3V).
– All inputs function as wake signals for low power modes.
– All inputs can be used as counters (odometer). 32bit, 3Khz max.
– 8 open collector outputs (100mA each).
– 2 high-side switches to Vin for output (1A each).
– Short-circuit protecion for all outputs.
– 4 analog inputs:
– 10 bit resolution, 1% accuracy.
– 2 Share digital I/O pins and 2 dedicated pins.
– 0-5.12V (5mV per bit) or 0-30.72V (30mV per bit) configurable by sw.
– Maxim 1wire
– microSD card holder.
– USB Host 2.0.
– 3 external RS232 ports. 6 pins configurable by SW as follows:
– 3 x (TX/RX) or
– 1 x (TX/RX) & 1 x (TX/RX/CTS/RTS) or
– 1 x (TX/RX/CTS/RTS/DCD/DTR)
– One RS485 port.
– Ethernet 10/100 BaseT.
– Vout 5V power output (500 mA max).
– FAKRA antenna connectors.
– 4 LEDs for status indication.
– Audio CODEC for external microphone and speaker.
– Availability of features depends on models.

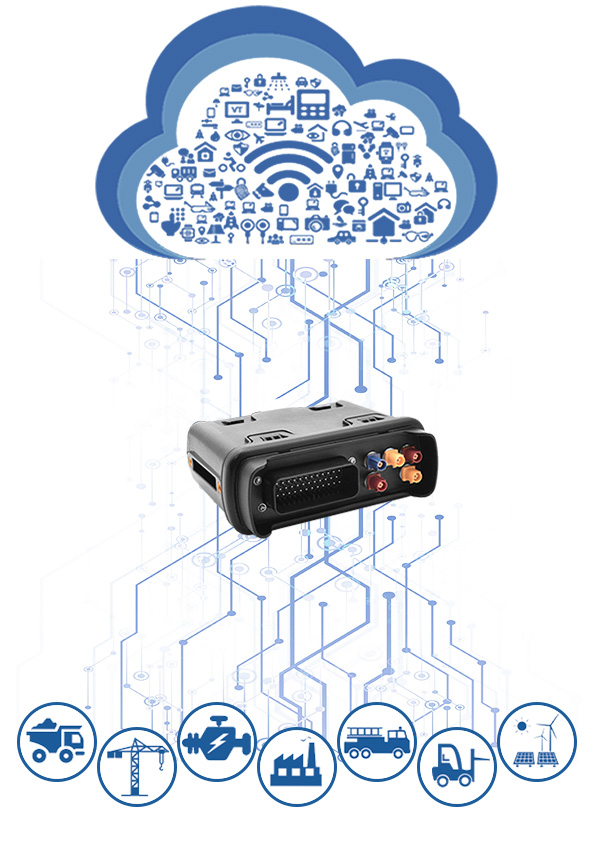

• Rugged enclosure
– Environmental protection to IP67 standard.
(full protection against dust and water).
– Dimension: L=149 x W=135 x H=58 mm)
– Weight: TBD (aprox 400g)
– Material: Glass reinforced plastic.
– System connectors: TE 776163-1 (35 pins)
– MicroSIM
– MicroSD
• Development Kit
Includes: Developer’s board owa4X, power supply cables,
cables for interfaces, antennas, web access to: cross
compiler, API´s, libraries, manuals and application notes.
• Options
Ask for product variants and options.
